Create a ChaosMap

privacy fist

Map integration on website
custom styled map
display third party api data
without dataprotection layer!

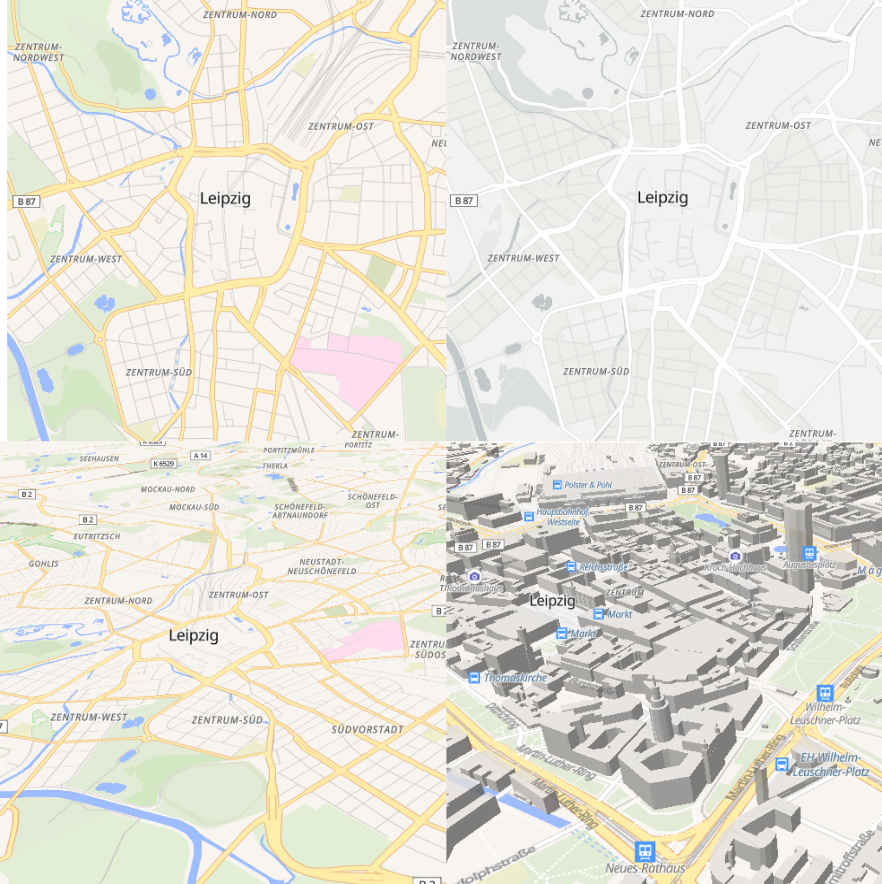

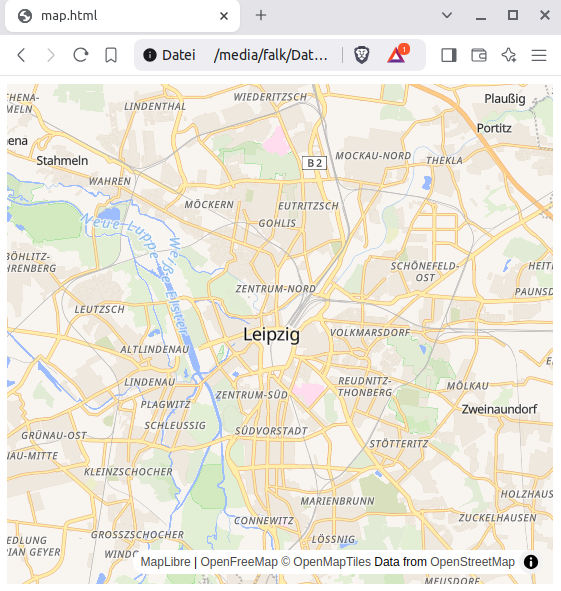

The map

openfreemap.org

open-source
no limits
no registration, no API keys
commercial usage allowed
provide weekly full planet


            <script src="https://unpkg.com/maplibre-gl/dist/maplibre-gl.js"></script>
            <link href="https://unpkg.com/maplibre-gl/dist/maplibre-gl.css" rel="stylesheet" />


            <div id="map" style="width: 100%; height: 500px"></div>
            <script>
              const map = new maplibregl.Map({
                style: 'https://tiles.openfreemap.org/styles/liberty',
                center: [12.377694794, 51.34326162],
                zoom: 11,
                container: 'map',
              })
            </script>

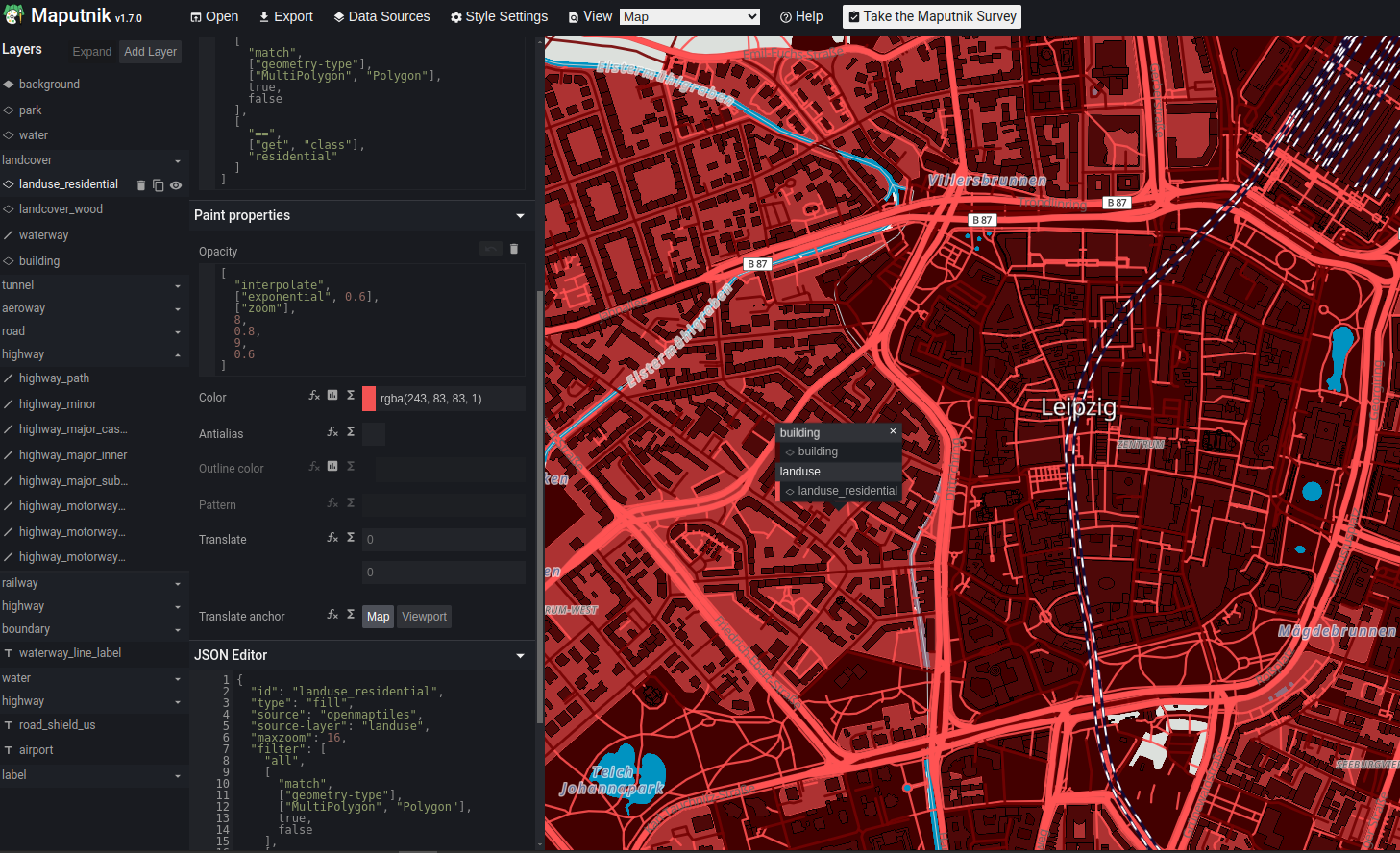

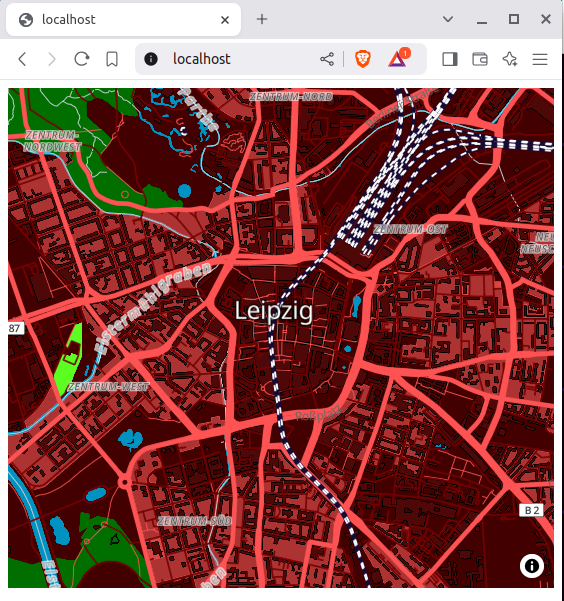

customize the map

https://maputnik.github.io/editor?style=https://tiles.openfreemap.org/styles/positron

Maputnik

load default style
streets, labels, wood, buildings, water, ...
visibility by zoomlevel, color, size, ...
style by filter (e.g. name, zoom level)
export nur style json file


              const map = new maplibregl.Map({
                style: './style.json',
                center: [12.377694794, 51.34326162],
                zoom: 11,
                container: 'map',
              })

The proxy

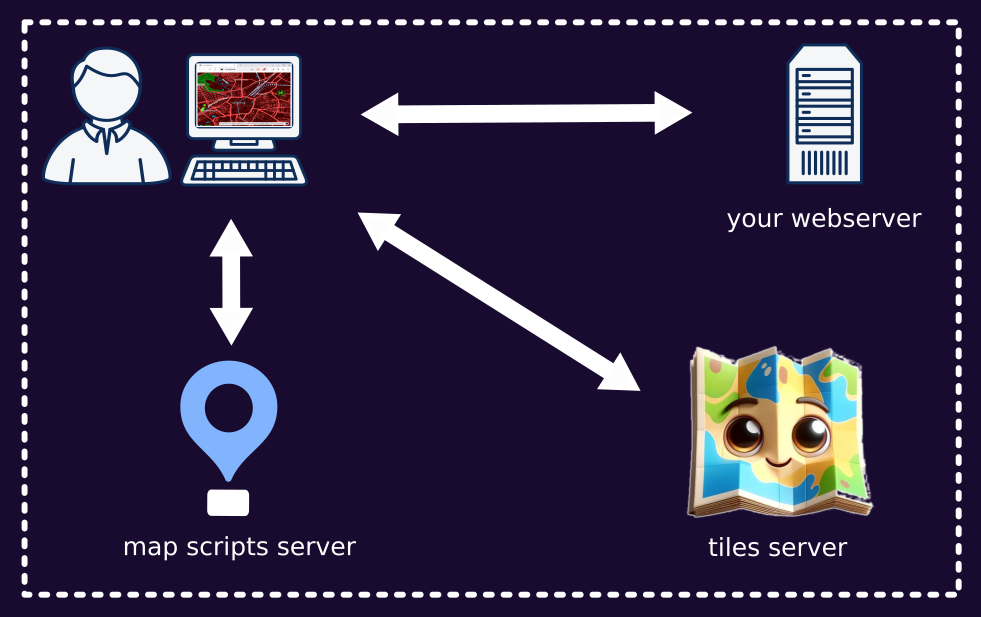

actual state

client request resources on diffrent servers
third parties recive request, can send cookies, use server logging of IP, ...
need dataprivacy layer on site

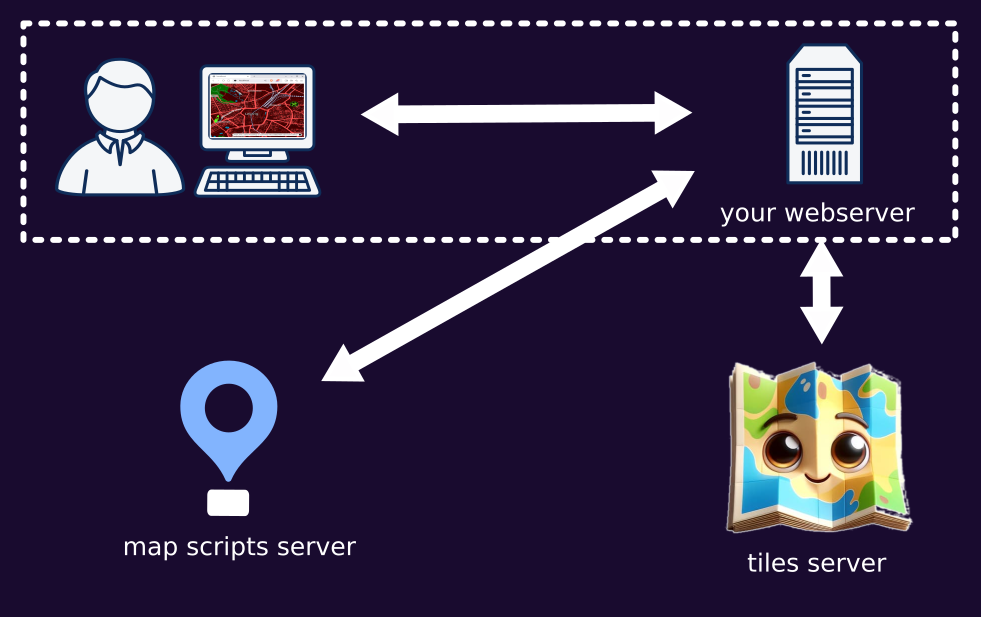

with proxy

all requests to your server
server request third pary resouces and deliver it to client
no need dataprivacy layer on site
can use cache

/proxy/index.php


            use FalkM\Proxy\Proxy;
            require_once('vendor/autoloader.php');

            $config = ["proxies" => [
                          "tiles" => [
                              "url" => "https://tiles.openfreemap.org"
                          ],
                          "maplibre-gl" => [
                              "url" => "https://unpkg.com/maplibre-gl@5.1.0"
                          ]
                      ]];
            (new Proxy($config))->run();


            <script src="./proxy/maplibre-gl/dist/maplibre-gl.js"></script>
            <link href="./proxy/maplibre-gl/dist/maplibre-gl.css" rel="stylesheet" />


            <div id="map" style="width: 100%; height: 500px"></div>
            <script>
              const map = new maplibregl.Map({
                style: './proxy/tiles/styles/liberty',
                center: [12.377694794, 51.34326162],
                zoom: 11,
                container: 'map',
              })
            </script>

needs .htaccess or nginx rewrite for /proxy/*
proxy replace dest-urls with proxy-urls in json, html and js files
full example with caching: github.com/falk-m/proxy/tree/master/demo

extend the map

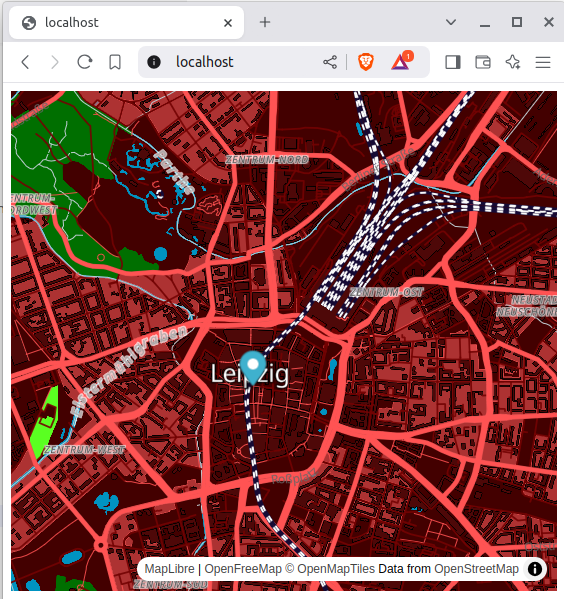

add standard marker


            new maplibregl.Marker({color: "#3FB1CE"})
            .setLngLat([12.375019474, 51.34091034])
            .setPopup(new maplibregl.Popup().setHTML("Hello World!"))
            .addTo(map);

more marker


            const points = [
            {
              type: "Feature",
              geometry: {
                type: "Point",
                coordinates: [12.396221, 51.3464008],
              },
            },
            ...
          ];

add source to map


            map.addSource("points", {
              type: "geojson",
              data: {
                type: "FeatureCollection",
                features: points,
              }
            });

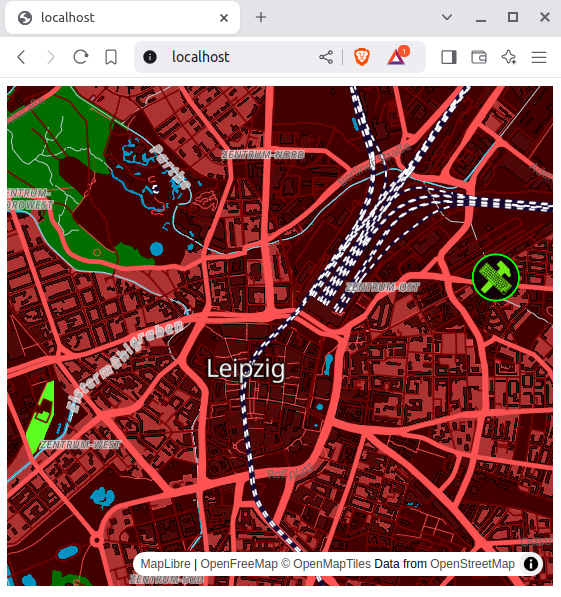

add custom marker from image


            map
            .loadImage("./marker.png")
            .then((image) => map.addImage("custom-marker", image.data));

display points with custom marker


            map.addLayer({
              id: "symbols",
              type: "symbol",
              source: "points",
              layout: {
                "icon-image": "custom-marker",
                "icon-size": 0.4
              },
            });

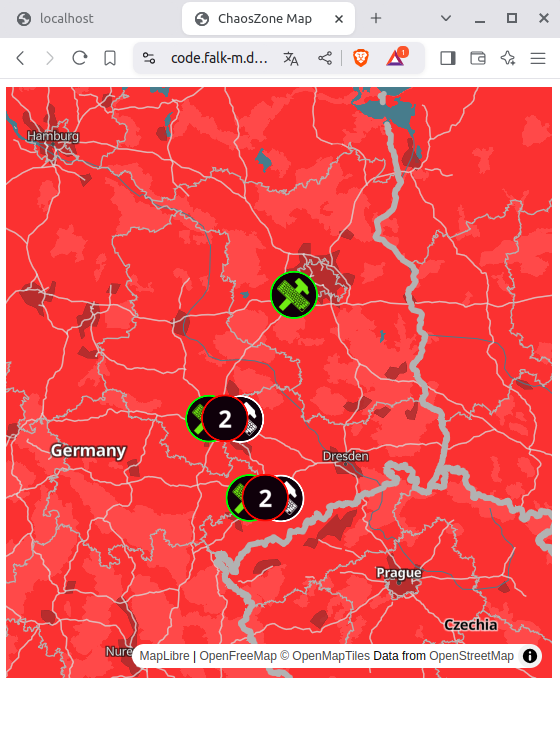

cluster marker

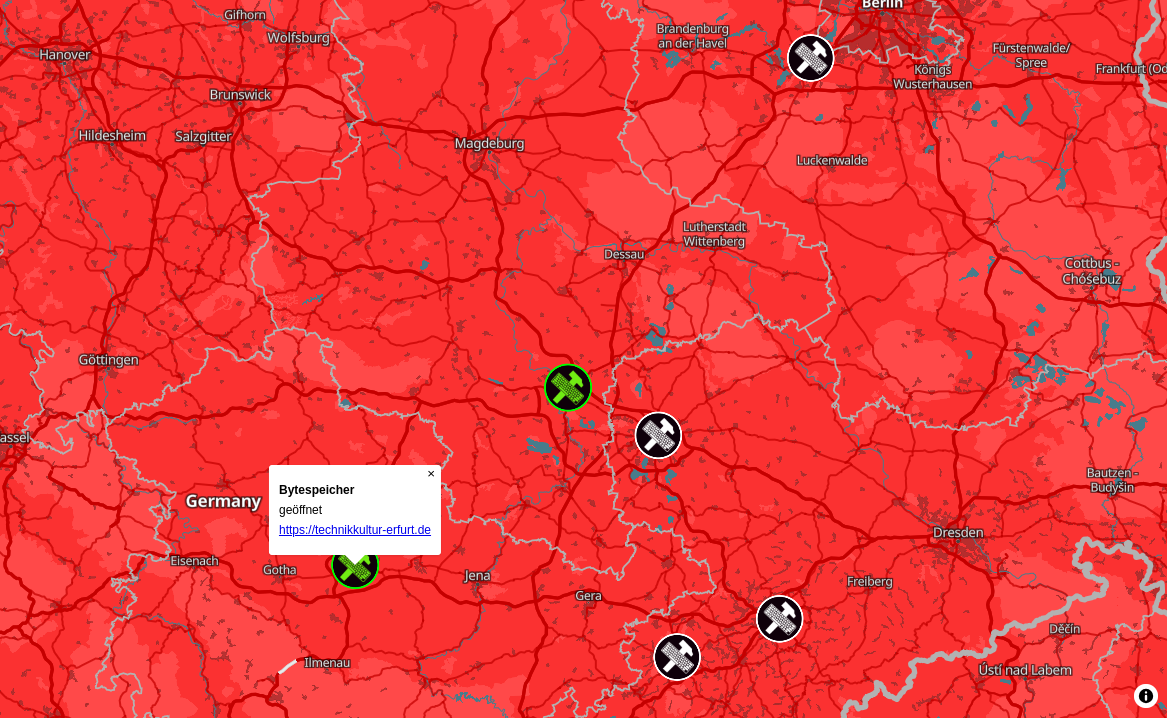

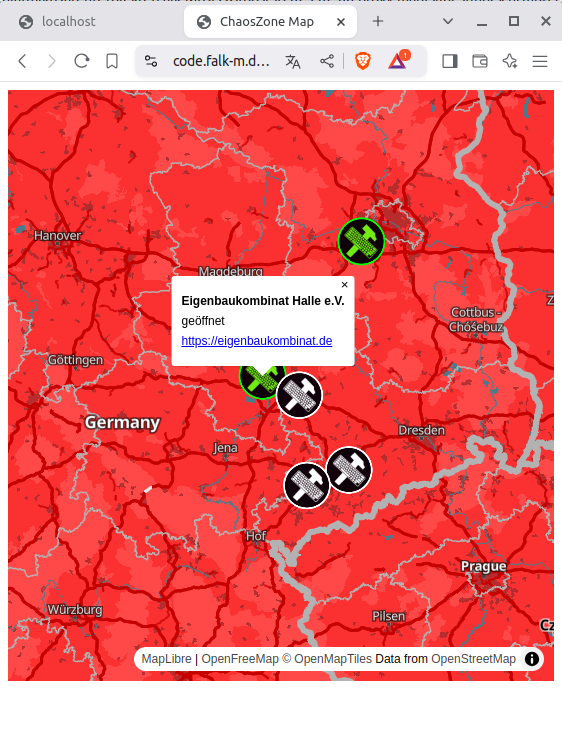

popups

Space Api

spaceapi.io
information about hackerspaces, makerspaces, fablabs, chaostreffs
status, url, name, address, projects, calendar, blog, ...
SpaceAPI Schema
Directory: list of URLs


            {
              "api_compatibility":[
                 "15"
              ],
              "space":"Eigenbaukombinat Halle e.V.",
              "logo":"https://eigenbaukombinat.de/ebklogo.png",
              "url":"https://eigenbaukombinat.de",
              "location":{
                 "address":"Landsberger Stra\u00dfe 3, 06112 Halle (Saale), Germany",
                 "lon":11.99221,
                 "lat":51.47996
              },
              "feeds":{
                 "calendar":{
                    "type":"ical",
                    "url":"https://kalender.eigenbaukombinat.de/public/public.ics"
                 },
                 "blog":{
                    "type":"rss",
                    "url":"https://eigenbaukombinat.de/index.xml"
                 }
              },
              "contact":{
                 "email":"kontakt@eigenbaukombinat.de",
                 "issue_mail":"kontakt@eigenbaukombinat.de"
              },
              "state":{
                 "open":false
              },
              "ext_ccc":"chaostreff",
              "ext_habitat":"chaoszone"
           }

code.falk-m.de/cz/ (later on https://chaoszone.cz/)

complete example:
github.com/falk-m/chaoszone-map
